Factory Direct Supply High-Purity Tinned Copper Busbar
Source premium tinned copper busbars directly from our factory, eliminating middleman costs while ensuring superior quality control. Our high-purity (99.9%-99.995%) copper busbars feature electro-tinned surfaces for enhanced corrosion resistance and optimal conductivity.
Product Specifications
| Product Name |
Tinned Copper Busbar (Factory Direct) |
| Material Grades |
T1, T2, T3 (C11000, C10200, C12000, C12200, etc.) |
| Copper Purity |
99.9% - 99.995% (Cu ≥ 99.99% min) |
| Available Shapes |
Square Busbar / Rectangular Bar |
| Thickness Range |
70mm - 800mm (Customizable) |
| Standard Length |
2 - 6 meters |
| Width Options |
20mm - 800mm or as required |
| Surface Treatment |
Electro-Tinned (Anti-corrosion coating) |
| Hardness Options |
Soft, 1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Extra Hard, Spring Hard |
| Processing Services |
Precision Cutting, Custom Bending |
| Compliance Standards |
GB/T4423-2007, JIS H3250/H3300, ASTM B152M |
| Minimum Order Quantity |
50 Kilograms |
| Payment Terms |
T/T (30% deposit required) |
Key Features & Benefits
- Factory Direct Pricing: Eliminate distributor markups with competitive wholesale pricing
- Superior Conductivity: 99.9%-99.995% pure copper ensures minimal electrical resistance
- Enhanced Protection: Tin-plated surface provides excellent corrosion resistance in harsh environments
- Grade Flexibility: T1 (highest purity), T2 (standard electrical), T3 (industrial applications)
- Custom Manufacturing: Tailored dimensions, hardness levels, and processing to exact requirements
- Quality Assurance: Factory inspection available with internationally recognized material standards
Applications
- Electrical Power Systems: Switchgear, panel boards, substation bus ducts
- Industrial Machinery: Copper wire stripping equipment, transformers, generators
- Transportation: Marine electrical systems (boat building), automotive power distribution
- Renewable Energy: Solar farm connections, wind turbine power collection
- Telecommunications: Grounding systems, power backup infrastructure
- Defense & Aerospace: Specialized applications requiring high-reliability conductors

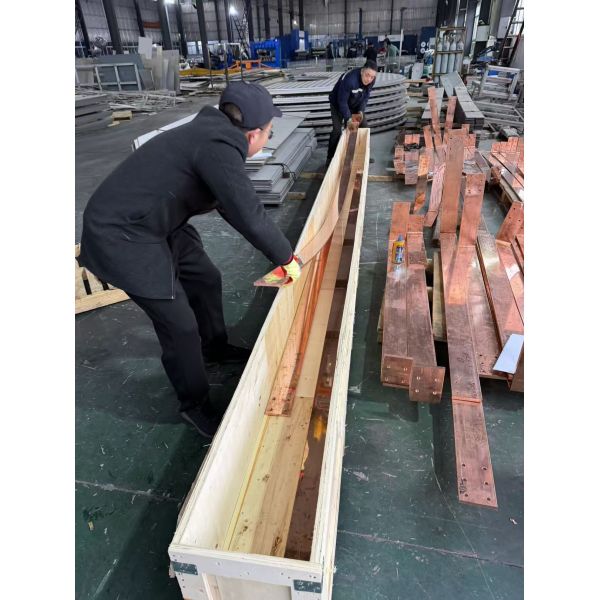

Packaging and Shipping
Frequently Asked Questions
What's the difference between T1, T2, and T3 copper grades?
T1 represents the highest purity copper (99.95%+), ideal for applications requiring maximum conductivity. T2 is standard electrical-grade copper (99.90%+), suitable for most industrial uses. T3 contains slightly more impurities but offers excellent performance for cost-sensitive applications while maintaining good conductivity.
Why choose tinned copper over bare copper busbars?
Tin plating provides multiple benefits: it prevents oxidation and corrosion (especially in humid or salty environments), improves solderability for connections, reduces surface oxidation that increases resistance over time, and provides better performance in high-temperature applications.
Can you customize busbar dimensions beyond the standard range?
Yes, as a factory-direct manufacturer, we specialize in custom dimensions. We can produce busbars with thickness from 70mm to 800mm and widths from 20mm to 800mm, with specific length requirements accommodated through our cutting and processing services.
What processing services do you offer?
We provide precision cutting to specified lengths and professional bending services to create custom shapes and angles for complex installation requirements. All processing maintains the integrity of the tin plating and material properties.
What is the lead time for custom orders?
Standard products ship within 7-14 days. Custom specifications typically require 15-30 days depending on complexity and order quantity. We provide detailed production timelines with each quotation.
What packaging do you use for export?
We use standard seaworthy packaging with protective wrapping, wooden crates, or pallets as needed to ensure safe transportation. Custom packaging solutions are available for specific logistic requirements.
