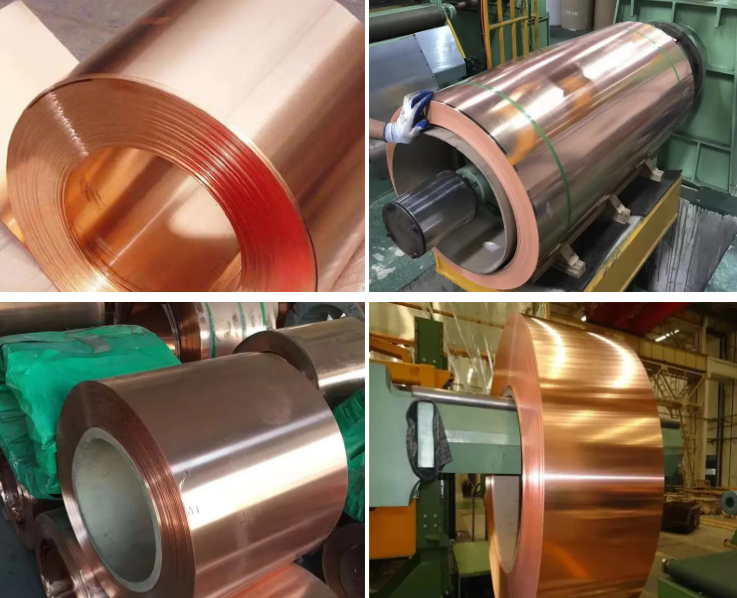

Pure Copper Strip - C1100, C1200, T1, T2, T3 Grades
The 99.9% Pure Copper Strip is a premium copper material renowned for its exceptional electrical conductivity, thermal properties, and corrosion resistance. Manufactured from red copper, this strip is available in multiple grades including T1, T2, T3, C1100, and C1010, making it suitable for diverse applications in electrical and construction industries.
This versatile copper strip offers customizable widths from 30mm to 800mm and thicknesses from 0.05mm to 2.0mm. With a tensile strength of ≥315MPa and elongation of ≥30%, it provides excellent durability and flexibility for manufacturing electrical components, battery caps, buttons, seals, and other critical parts.
Key Specifications
| Material | Red Copper |
| Copper (Min) | 99.9% |
| Alloy | Non-Alloy |
| Place of Origin | China |
| Grade | T1, T2, T3, C1100, C1010, H59, H58 |
| Thickness | 0.05mm - 2.0mm (Customizable) |
| Width | 30mm - 800mm (Customizable) |
| Length | Customizable |
| Tensile Strength | ≥315MPa |
| Elongation | ≥30% |
| Hot Working Temp. | 650℃ - 850℃ |
| Annealing Temp. | 600℃ - 700℃ |
| Processing Services | Bending, Welding, Decoiling, Cutting, Punching |
| MOQ | 1 Ton |
FAQ
What grades are available for the copper strip?
Available grades include T1, T2, T3, C1100, C1010, H59, and H58, depending on your application requirements.
What is the MOQ for the copper strip?
The minimum order quantity is 1 ton for bulk orders.
Can the copper strip be customized?
Yes, we offer full customization of widths, thicknesses, lengths, and processing services to meet your specific needs.
What are the surface finishes available?
The copper strip can be supplied with a mill finish, polished, or other custom surface treatments as required.
What industries use copper strips?
Electrical, construction, automotive, and consumer electronics industries rely on copper strips for components such as wires, seals, connectors, and battery caps.
What is the temperature range for hot working and annealing?
The hot working temperature ranges between 650℃ and 850℃, while the annealing temperature ranges between 600℃ and 700℃.
